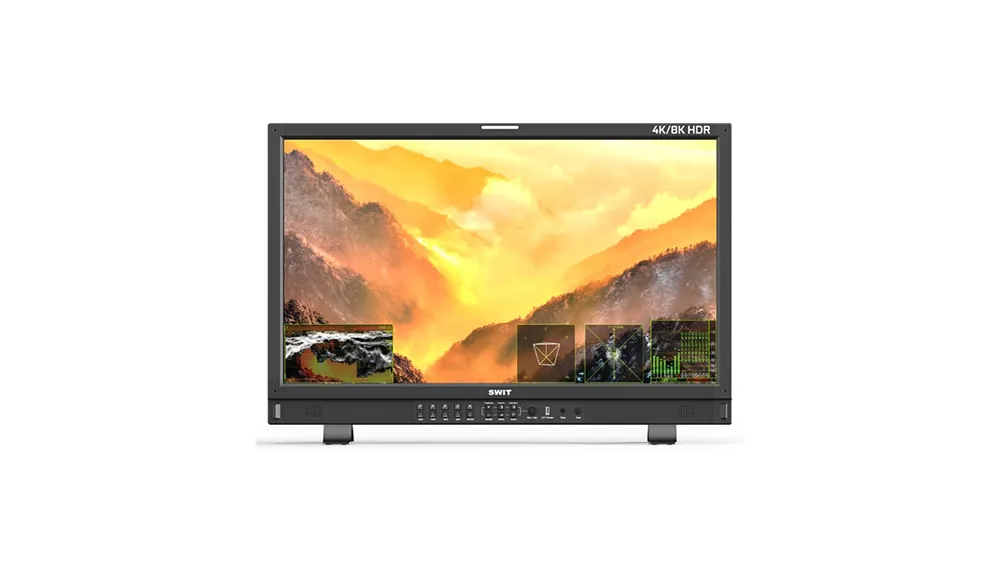

The Swit BM-U325HDR 4K/8K 12GSDI HDR QLED 31.5 Studio monitor compares the color difference and generates 3DLUT and calibrates automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: E1.0. Built-in 3DLUT calibration software, supports X-rite i1 and Jeti Specbos 1211 probes for direct connection with the monitors USB port. The monitor generates color models and the color probes read the color, sending the color information to the monitor via USB.
The Studio Swit monitor adopts a 31.5-inch 10-bit QLED (Quantum Dot LED) panel, 3840×2160 UHD resolution, 1000-nit high brightness LED backlight for HDR display, 1000:1 contrast, 100% DCI-P3 wide color gamut. The viewing angle is horizontal: 178° / vertical: 178°. You can also input 4 independent 4K inputs for quadview, support input of mixed 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 formats, as well as waveform, vector, HDR/SDR range selection, color range selection and UMD displays for each input window. In addition to Quadview, any 2 inputs can be selected to display Pic-by-Pic or Pic-in-Pic modes for convenient video production.
The QLED panel has a Quantum Dot layer between the LCD screen and LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, evenly stimulating the cone cells and effectively reducing eye fatigue. VICO (Visual Health and Comfort) test scored 1.97, Class A, to protect the eyes from long video editing or studio productions.
| Weight | 16 kg |
| Dimensions | 75,3 × 49 × 11 cm |
| Screen type | LCD |
| Screen dimensions | 31.5 |
| Screen resolution | 3840 x 2160 px |
| Brightness | 1000nits |
| Input | 4x BNC: 12G/6G/3G/HD/SD-SDI 1 x HDMI 2.0 1 x SFP: fiber optic (via optional SFP adapter) 1 x RS485: TSL 3.1/4.0 UMD 1 x RS485: GPI (Tally) 1 x RJ45: 1000M Ethernet for IP control of the Webserver |
| Output | 4x BNC: Loop 12G/6G/3G/HD/SD-SDI 1 x RS485: TSL 3.1/4.0 UMD 1 x 3.5mm headphones and speaker |
| Formato video | SDI 1/2/3/4: 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50) Quad Link 4K (each channel): 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) Quad Link 8K (each channel): 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) HDMI: 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50) |
| Color | Black |
| Power supply | AC 100-240V, 50/60Hz |
| Consuption | 200W |
| Working temperature | 0°+50°C |
| Storage temperature | -15°+60°C |
