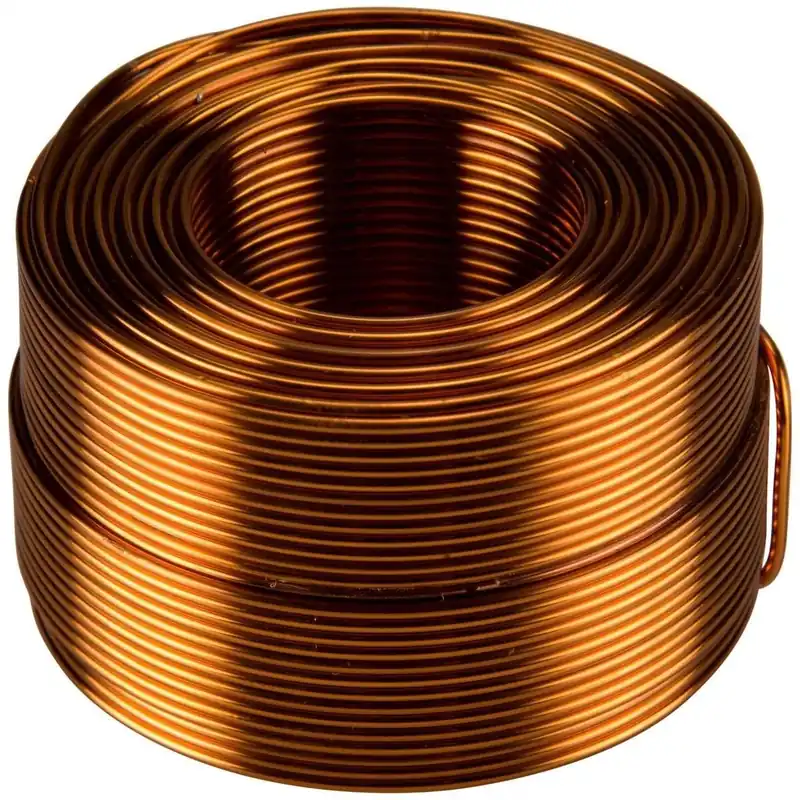

Descrizione del prodotto Jantzen Audio 000-1247 | 2,7 mH | 0,525| 3% | 15 AWG
The Jantzen Audio 000-1247 is a high-quality air core coil specifically designed for audio applications.
Highlights
- Made with high-purity copper wire
- Modern self-supporting design, eliminating the need for plastic bobbins.
- Low inductance tolerance of +/-3%
- Enameled copper wire solderable with self-bonding topcoat.
Product details
Jantzen Audio 000-1247 | 2,7 mH | 0,525| 3% | 15 AWG | Air Core Coil
The Jantzen Audio 000-1247 is a superior air core coil perfect for all audio applications. It's crafted with high-purity, Grade 1B copper wire, ensuring a distortion-free inductor. This modern, self-supporting design eliminates the need for plastic bobbins, providing a more efficient and reliable product. The coil is characterized by a low inductance tolerance of +/-3%, ensuring precise performance. The enameled copper wire is solderable and comes with a self-bonding topcoat. This product adheres to the class 155, in accordance with IEC 60317-35 and DIN EN 60317-35. The copper wire is coated with polyurethane and an aliphatic polyamide bond coat, promising durability and long-lasting performance. Choose Jantzen Audio for superior crossover components and air core coils.
