Descrizione del prodotto Intertechnik TRI92/1.8/0.50 | 1,8 mH | 0,494| 1% | 7 x 24 AWG

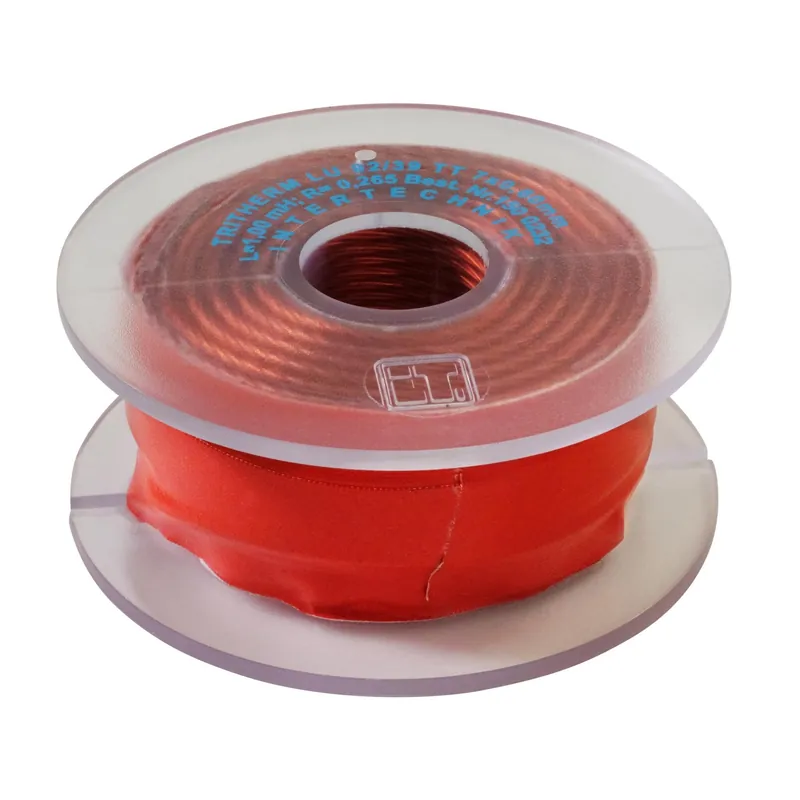

The I.T. Intertechnik TRI92/1.8/0.50 is a high-end air core coil for crossover components, featuring advanced Septem Coxid technology.
Highlights
- Comes with 1.8mH inductance and 0.494 resistance
- Uses Septem Coxid technology for enhanced performance
- Provides skin effect reduction and increased current capacity
- Ensures top-notch sound quality with minimal distortion
Product details
I.T. Intertechnik TRI92/1.8/0.50 | 1,8 mH | 0,494| 1% | 24 AWG | Tritec Coil
The I.T. Intertechnik TRI92/1.8/0.50 is a superior air core coil, part of the Crossover Components Coils Air Core Coils category. It features Septem Coxid technology that uses concentric litz construction with seven individual strands. This design ensures low ohmic resistance and minimal skin effect, with no saturation or hysteresis distortions. The coil maintains constant inductance during voltage and load changes, with a low self-capacitance. The wire connection length is 100mm, with a 10mm tin coating. The coil body material is made of durable polycarbonate, and the copper purity exceeds 99.99%. It also has a temperature coefficient of 0.000394 per degree Celsius, and is resilient against temperature changes, withstanding between -90 and 135 degrees Celsius. This Tritec coil ensures excellent sound quality, making it a preferred choice in audio cabling.
I.T. Intertechnik article code: 1500185
