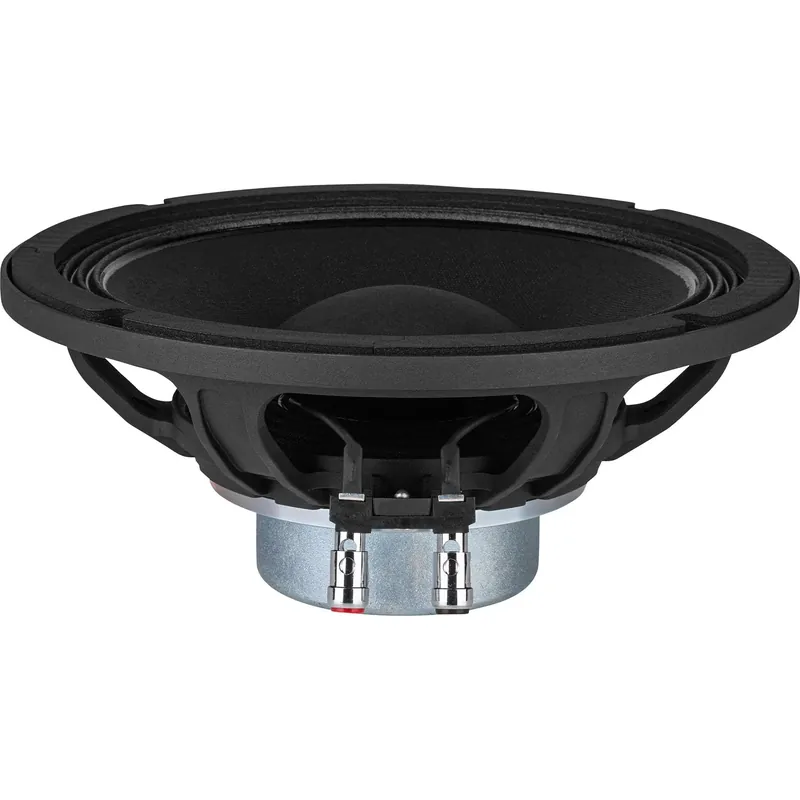

Descrizione del prodotto FaitalPRO 10PR320-8P Bass-mid Woofer
Powerful and compact, the FaitalPRO 10PR320-8P is a high-performance 10" neodymium midbass driver tailored for professional audio applications. With a robust 300W AES power handling and 96 dB sensitivity, it delivers clear and efficient sound reproduction across a wide frequency range. Its lightweight design and premium materials make it ideal for portable and installed systems alike.
Highlights of the FaitalPRO 10PR320-8P
- 300W AES / 600W peak power handling with 96 dB sensitivity
- Wide frequency response from 50 Hz to 4000 Hz
- Neodymium magnet and aluminum basket for lightweight, high-strength design
- Glass fiber voice coil former and polycotton triple roll surround enhance durability and sound accuracy
Product details FaitalPRO 10PR320-8P
FaitalPRO 10PR320-8P professional midbass loudspeaker
The FaitalPRO 10PR320-8P is engineered for demanding midbass reproduction in high-performance speaker systems. Featuring a 10" (250 mm) nominal diameter, this driver offers 300W AES power handling and a maximum power rating of 600W, ensuring reliable operation under heavy load. The 96 dB sensitivity at 1W/1m makes it extremely efficient, ideal for live sound, stage monitors, and PA systems.
Its lightweight neodymium magnet and aluminum basket reduce overall system weight without compromising structural integrity. A 65 mm (2.56 in) voice coil made from aluminum with a glass fiber former ensures excellent thermal resistance and accurate performance. The cone is supported by a treated polycotton triple roll surround and a single variable-height wave spider for consistent linear motion.
With a frequency response range of 504000 Hz, the 10PR320-8P excels in reproducing tight midbass and lower midrange frequencies. Thiele & Small parameters, including a low Qts of 0.29 and an EBP of 155 Hz, suggest suitability for vented enclosures with good transient response. The Xmax of 7.37 mm and Xdamage limit of 17 mm provide room for clean excursion without distortion.
Perfect for use in multi-way speaker systems, this driver combines efficient power handling, precision construction, and a compact footprint, making it a top choice for both touring professionals and audio system designers.
