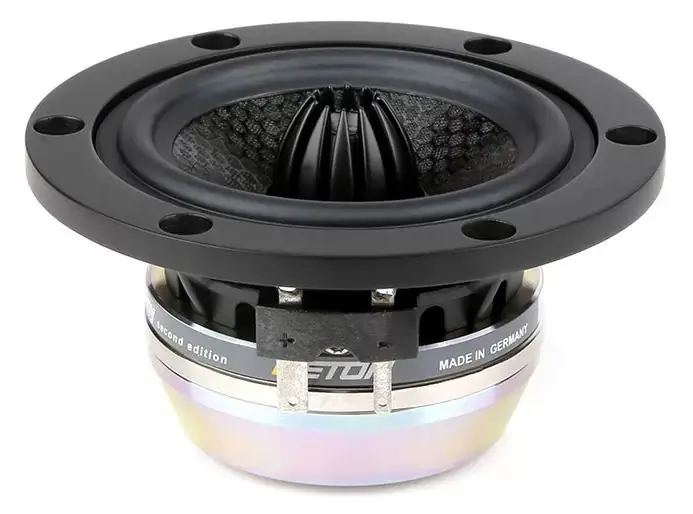

Promozione ETON 3-312/C8/25 HEX Bass-mid Woofer

Il prezzo originale era: 149,95 €.Il prezzo attuale è: 59,98 €.

Pagamenti sicuri Carta, PayPal e checkout protetto
Spedizione gratuita da 56,00 € Consegna rapida in tutta Italia
Supporto rapido Assistenza su ordini e spedizioni
COD: SK0005174 Categoria: Tag:

Descrizione

Descrizione del prodotto

Descrizione del prodotto ETON 3-312/C8/25 HEX Bass-mid Woofer

3 Bass-Mid range driver with mid range preference, Phase plug construction, 3-layer Hexacone Sandwich cone, spacial and open reproduction, uncolored sound performance.

Highlights

  • Uncompromising sound quality
  • Uncolored sound reproduction
  • Frequency range: 503000 Hz
  • Milestone in Sound

Product details

ETON 3-312/C8/25 HEX Bass-mid Woofer

The Hex Symphony II Series is the logical development of our successful patented Symphony I Series.
All of ETONs expertise has been poured into the development of the Symphony Series.

For the first time, the specially patented production process enabled the three-layered sandwich type of construction in combination with aramid fibres and their hexagonal internal structure. Maximum rigidity and excellent internal absorbing action are therefore guaranteed. The manually applied coating also supports neutral cone behaviour and provides the surface with visual depth.

The Symphony II midrange drivers and woofers create unique sound spectrums typical of Hex. The sound features are harmonic, smooth reflections of the overtones and distinctive, light midranges. A precise and powerful bass is created in the woofer range. All Symphony II chassis are characterized by a high degree of musical imaging and an impressive soundscape.

The ferrite magnet geometrys special design makes the magnetic field almost perfectly symmetrical. Multiple ventilation and the flow-supporting cast basket guarantees mini[1]mum compression effects at large amplitudes.

Symphony, unique in sound and design.

Show more

Mostra meno

Specifiche

Numero dell'articolo:

3-312/C8/25 HEX
EAN

8785256846689
Serie del woofer :ETON Symphony II series
Tipo di woofer :Bass-midwoofer
Diametro nominale :3"
Gestione della potenza (RMS) :40 Watts
Impedenza (Z) :8
Sensibilità (SPL a 1m / 2,83V) :87 dB
Risposta in frequenza :130-13.000 Hz
Diametro della bobina mobile :25 mm
Resistenza DC (Re) :5.9
Induttanza della bobina mobile (Le) :0.09 mH
Frequenza di risonanza (Fs) :122 Hz
Fattore di merito meccanico (Qms) :0.43 mm/N
Fattore di merito elettromagnetico (Qes) :0.30
Fattore di merito totale (Qts) :0.29
Massa del diaframma incl. la massa dell'aria (Mms) :4.0 g
Massa in movimento del diaframma (Mmd) :4.0 g
Prodotto BL (BL) :7.4 Tm
Volume equivalente di cedevolezza (Vas) :0.7 Liters
Escursione lineare massima (Xmax) :2 mm
Perdite meccaniche del driver (Rms) :0.53 kg/s
Materiale del filo della bobina mobile :Copper
Supporto della bobina mobile :Kapton
Materiale del magnete :Neodymium
Diametro esterno complessivo :102 mm
Profondità complessiva :52 mm
Diametro del ritaglio del pannello frontale :78 mm
Diametro del cerchio dei fori di montaggio :91 mm
# Numero di fori di montaggio :6
Diametro dei fori di montaggio :4.3 mm
