Descrizione del prodotto Jantzen Audio 000-1128 | 0,85 mH | 0,64| 3% | 20 AWG

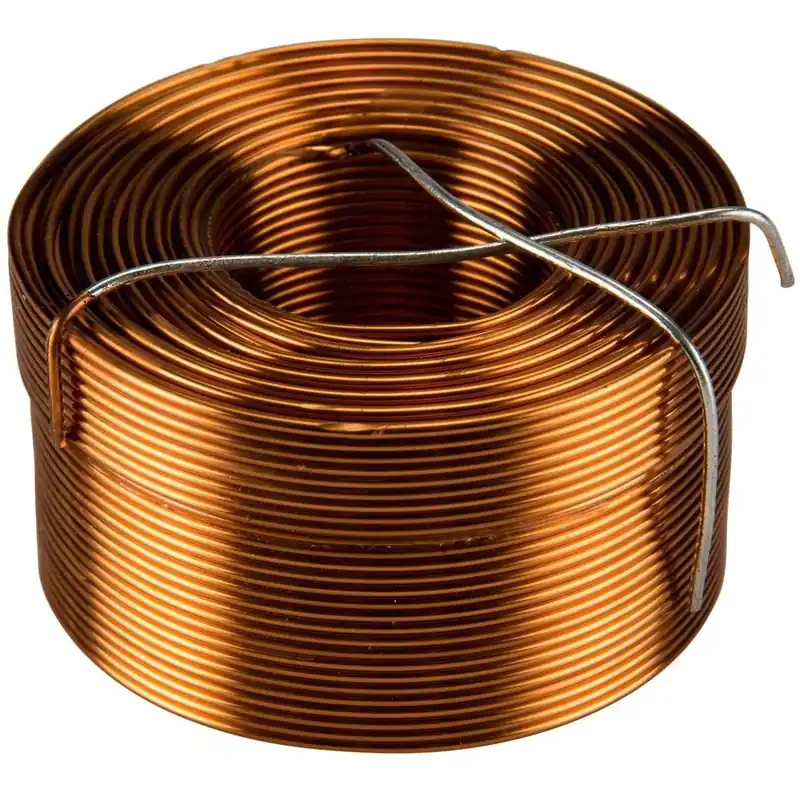

The Jantzen Audio 000-1128 is a high-purity, low inductance tolerance air core coil, designed for superior audio applications.
Highlights
- High-purity copper wire for distortion-free inductor
- Self-supporting design without plastic bobbins
- Enameled copper wire solderable with self-bonding topcoat
- Low inductance tolerance of +/-3%
Product details
Jantzen Audio 000-1128 | 0,85 mH | 0,64| 3% | 20 AWG | Air Core Coil
The Jantzen Audio 000-1128 is a top-notch Air Core Coil that stands out in the category of Crossover components Air core coils. It is created with high-purity copper wire, which is 'baked' into a perfect shape to form a distortion-free inductor, making it ideal for all audio applications. It features a modern self-supporting design that eliminates the need for plastic bobbins, thereby increasing reliability and performance. The enameled copper wire is solderable with a self-bonding topcoat of class 155, in accordance with IEC 60317-35 and DIN EN 60317-35 standards. It is a Grade 1B copper wire coated with polyurethane and an aliphatic polyamide bond. One of its major highlights is its low inductance tolerance of +/-3%, which ensures precise and consistent performance. This air core coil is a great addition to any audio system seeking improved sound quality.
