Descrizione del prodotto ICEpower 200AS2 Modulo Amplificatore
The 200AS2 is a dual-channel, Class D amplifier with a fully integrated switch-mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.
Highlights
- Fully integrated module, no need for additional circuits
- 2x 150W, both channels driven
- Minimum load of 3.5
- Auto-on / Signal detect
- Extended monitor and status interface
- 8 +Vdc and 17 ±Vdc auxiliary outputs
Product details

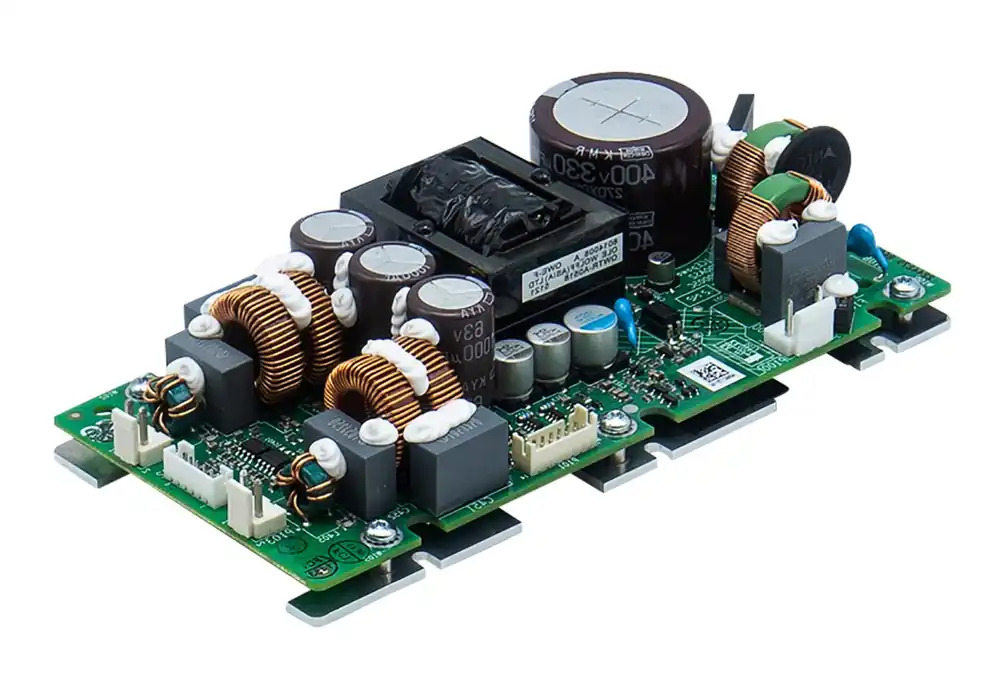

ICEpower 200AS2 Amplifier Module with Integrated Power supply
This 215-watt high-performance, reliable and self-contained amplifier module from the AS-series. The integrated power supply, ruggedness and easy-to-use control features make it a great competitor in the amplifier module category for a wide range of applications.
The AS-series from ICEpower offers excellent audio performance thanks to the patented modulation and control techniques. The capable integrated SMPS can continuously output up the 300 watts. The ruggedness is further improved with protection circuits, brand-name components and extensive test and burn-in during production.
This module has a user-friendly control interface, that features stand-by control, auxiliary power outputs and various status control in- and outputs. Thinking that is too complicated? We havent mentioned the plug-n-play compatibility yet; Just connect the mains, signal and speakers and you are ready to play some music!
Check out the 200AS1 for the single-channel version, 100AS2 for the 100-watt version or the 1200AS2 for the most powerful module in the AS-series.
Cable set
The included cable set gives access to all the functions of the 200AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.
Whats In The Box?
- 1 x 200AS2 amplifier module with integrated SMPS
- Cable set:
- 1 x (NA) Audio input 2 channel
- 1 x (K) Mains without Earth
- 2 x (F) 2pole Universal Speaker
- 1 x (NC) Basic control/features
